HTPC: Home-Theater Personal Computer

Is this the right type of PC for me?

If you’re looking for a PC to listen to music, browse the web, look at pictures, watch TV or DVD/Blu-Ray Disks, you’re at the right place. If this is not what you’re looking for, check out our other Computer Systems instead.

This article is the result of a collaboration between Brian, our contributor for The Best CPU Coolers For Your Money and myself (Mathieu). We hope that you enjoy the results!

About Hardware Revolution’s Budget HTPCs:

Good Performance with a reliable, low-noise design
These computers are designed to be tucked into a corner of your living room, kitchen, or bedroom and can be used to power a TV in a discrete manner (people won’t notice that the TV content is actually coming from a fully fledged computer).

As such, our focus won’t be on offering the best performance for the dollar, but it will instead be focused on offering good performance while maintaining excellent reliability, attractive and compact cases, low noise, and relatively low temperatures.

In addition, I’ll be offering suggestions for accessories on ways to provide input for the HTPC/SFF, ranging from small remote-like controllers to full size keyboards and mouses.

Hardware Parts Recommendations

(Scroll down for detailed section)

Components	Make, Model and Specifications	Price
Motherboard	ASRock AMD E-350 Mini ITX Motherboard/CPU Combo ASUS E35M1-I DELUXE AMD E-350 Mobo/CPU Combo	$110 $175
CPU	Embedded AMD E-350 1.6 GHz Dual-Core	Free
GPU	Integrated AMD Radeon HD 6310: VGA, DVI, HDMI	Free
RAM	G.SKILL 4GB (2 x 2GB) DDR3 1333MHz G.Skill 8GB (2x4GB) DDR3 1333MHz	$26 $45
Storage	SAMSUNG Spinpoint F4EG 1.5TB 5400 RPM SATA II 3.5″ Intel 320 Series 2.5″ 40GB SATA II SSD SAMSUNG EcoGreen F4 HD204UI 2TB SATA II 3.5″ Hitachi Deskstar 3.5″ 3 TB SATA III	$60 $105 $80 $145
Optical Drive	ASUS 24X SATA DVD Burner SAMSUNG 12X Blu-ray Reader 16X DVD/48X CD Burner SATA LG Black 12X SATA Blu-ray Burner	$20 $55 $80
Case	Silverstone ML-03BMini-ITX/Micro-ATX LIAN LI PC-Q11B Black Mini-ITX LIAN LI PC-Q11A Silver Mini-ITX LIAN LI PC-Q08B Black Mini-ITX LIAN LI PC-Q08A Silver Mini-ITX LIAN LI PC-Q08R Red Mini-ITX	$60 $80 $100 $110 $120 $120
Power Supply	SeaSonic SS-300ET 300W 80 PLUS Bronze	$40
Cooling	For Silverstone case only: Cooler Master R4-S8R-20AK-GP 80mm Case Fan (x2)	$10
TV Tuner	AVerMedia AVerTV Hybrid Volar Max USB 2.0	$80
Sound Card	8 Channel Onboard Audio ASUS Sonar DX For LIAN LI cases only: Creative Labs Sound Blaster X-Fi Titanium ASUS Sonar D2X	Free $70 … $100 $200
Network	10/100/1000 Mbps LAN Wireless 802.11 b/g/n, Bluetooth 3.0, Gigabit LAN Rosewill 802.11b/g/n 300Mbps Wireless USB2.0 5dBi Antenna AZiO BTD-V201 Bluetooth Adapter	Free Free $22 $13
Total Price	Tier 1: Basic Budget HTPC Tier 2: Premium Budget HTPC	$326 $496

Accessories

Accessories	Make, Model and Specifications	Price
Input Devices	Logitech M705 Marathon Mouse Logitech K750 Solar Keyboard ADESSO WKB-3200UB Wireless Keyboard w/ Optical Trackball nMEDIAPC HTPCKB-B Wireless Keyboard with Track Ball & Remote Logitech diNovo Mini Logitech diNovo Edge	$40 $60 $51 $80 $121 $155

Computer Builds FAQs:

I often get questions such as:

• Who are you to tell me which parts to choose?
• Can you suggest me a step by step guide to build a computer?
• Why should I build a PC instead of buying one in a store?
• And many more…

1. You will find the answers to all of these questions and more in this article: FAQ: How to Build Your Own Computer
2. Is this your first build? Here are 10 Quick Tips for 1st Time Builders to get you started.
3. Newly built computer won’t start? I invite you to read Help me: Why won’t my newly assembled PC start or boot?
4. Visit our forums here, where you can join our helpful community and ask questions.

Prices for B&H as of August 16th 2011. Click on Amazon links to see prices. Note that I get commissions for purchases made through links in this post. Prices and availability are subject to change.

Hardware Parts Recommendations, Detailed Version

Motherboard:

Tier 1:

$110 – ASRock AMD E-350 Mini ITX Motherboard/CPU Combo

This small Mini-ITX motherboard contains the E-350 CPU (which contains the Radeon HD 6310 GPU), which offers enough horsepower to do general computing tasks, as well as 1080p video playback.

Furthermore, it has low power consumption and a vast array of ports, probably everything you need, except for USB 3.0.

• Ports on the back: Four USB 2.0 ports, two USB 3.0, one PS/2, VGA, DVI and HDMI outputs, E-SATA, Gigabit LAN and 8 Channels audio + Optical S/PDIF Outputs.
• Expansion slots: On the board itself, you have one PCI-Express 2.0 16X slot, running at 4x.
• Other connectors/features on the motherboard: Two fan connectors (one four pin, one three pin), four SATA 6.0Gb/s and two USB 2.0 headers.
• Included in the box: Motherboard, two SATA cables, manual, CD with drivers/utilities and I/O backplate.

Tier 2:

$175 – ASUS E35M1-I DELUXE AMD E-350 Mini ITX Motherboard/CPU Combo

This high-end E-350 board has everything the ASRock has, and more.

It has another SATA III port, Bluetooth 3.0, Wifi IEEE 802.11 n and USB 3.0. It’s called deluxe for a reason.

• Ports on the back: Four USB 2.0 ports, two USB 3.0, one PS/2, DVI and HDMI outputs, Bluetooth 3.0, Wifi IEEE 802.11 n, Gigabit LAN and 6 Channels audio + Optical S/PDIF outputs.
• Expansion slots: On the board itself, you have one PCI-Express 2.0 16X slot, running at 4x.
• Other connectors/features on the motherboard: Two fan connectors (both three pins), five SATA 6.0Gb/s, two USB 2.0 headers and one USB 3.0 header.
• Included in the box: Motherboard, two SATA cables, two Wifi antennas, manual, CD with drivers/utilities and I/O backplate.

CPU:

Free: AMD E-350 1.6GHz (embedded on the motherboard)

The AMD E-350 is the perfect CPU for this build, as it has a small 18W TDP. It’s also faster than similar Intel Atoms, because it has out-of-order execution.

The CPU is embedded on the motherboard, so you don’t need to buy it separately.

GPU:

Free: AMD Radeon HD 6310 (integrated into the CPU)

The AMD Radeon HD 6310 is fully capable for 1080p video playback, and performs similarly to the Nvidia Ion platform for Intel Atom.

The video card is integrated into the CPU, so you don’t need to buy it separately.

RAM:

Tier 1 and 2:

$26 – G.SKILL 4GB (2 x 2GB) DDR3 1333MHz

4GB is really inexpensive and will ensure smooth video playback, especially with Blu-ray disks, where 2GB could cause shutters. 4GB is preferable to ensure smooth video playback along with Windows and background applications  such as your anti-virus, web browser, backups, etc.

Alternative

• $45 – G.Skill 8GB (2x4GB) DDR3 1333MHz – 8GB is also an extremely inexpensive option at the moment and although it won’t deliver much of a performance increase, it is a good way to future-proof your PC. RAM is so cheap, and if you have a little extra cash, 8GB of RAM is something to consider.

Storage:

Tier 1 and 2:

$60 – SAMSUNG Spinpoint F4EG HD155UI 1.5TB 5400 RPM SATA II 3.5″

Seeing as this is an HTPC, I went for “green” hard drives that spins slower at 5400 rpm.

That allows for lower noise, lower power consumption and lower heat dissipation.

No worries though, 5400 rpm is still plenty fast enough for video playback, even at 1080p. Boot times will suffer, which is why I’ve added an option for a SSD, which is optional for Tier 1 and recommended for Tier 2.

Alternatives

• $80 – SAMSUNG EcoGreen F4 HD204UI 2TB SATA II 3.5″ – Get an additional 500GB of storage capacity for $20 more with this HDD.
• $145 – Hitachi Deskstar 3.5″ 3 TB SATA III – If you want a LOT of storage capacity, this is the drive to get.

Regarding RAID:

The motherboards unfortunately do not feature hardware RAID. However, if you get two identical hard drives, you can use software RAID within an operating system such as Windows 7. I’d recommend RAID 1 to protect your data in case of hard drive failure.

I’d also recommend that you read the Have a Backup System that you can rely on! article and that you implement a solid backup solution, especially if you have a lot of content that you wouldn’t want to lose

Tier 2 Only:

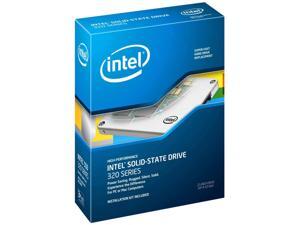

$105 – Intel 320 Series 2.5″ 40GB SATA II SSD

Is this the fastest and highest capacity SSD that you can get for $105? Nope.

However, you don’t need the fastest SSD for a HTPC and all the storage that you really need is 20GB to install Windows (if you don’t choose to go with Linux that is) so that your HTPC boots fast.

I picked the Intel 320 40GB because it is one of the most reliable SSDs available on the market today and also because it includes a 2.5″ to 3.5″ drive adapter and a much-needed SATA cable (The Tier 2 motherboard includes two SATA cables when you’ll need three (HDD, SSD and Optical Drive).

Optical Drive:

Tier 1 and 2

$20 – ASUS 24X SATA DVD Burner

This drive is able to read and burn CDs and DVDs. Silent, compatible with all major formats including DVD-RAM.

The recommended motherboards and parts include enough SATA cables for all your devices, so no need to worry about that.

Also, seeing as DVD Burners often go out of stock, here are a two alternatives that you can use to replace it. All are SATA based.

1. $22- LITE-ON Black 24X SATA Black CD/DVD Writer
2. $25- HP Black 24X SATA 24X CD/DVD Writer – Retail

Upgrades:

If you’d like to watch BluRay movies or TV shows, this $55 – SAMSUNG 12X Blu-ray Reader 16X DVD/48X CD Burner SATA will do the job. However, note that it can only read Bluray disks, not burn them. On the flip-side, it can burn DVDs and CDs without any problem.

If you want the ability to burn Blu-Ray disks as well, then the $80 – LG Black 12X BD-R 2X BD-RE SATA is what you want.

Regarding Blu-Ray playback:

As far as I know, you still require a specific software to playback Blu-Ray disks on a PC.

Based on various reviews and feedback on various forums, PowerDVD 11 3D Ultra is the software that I recommend to you.

It is fully compatible with Windows 7 and shouldn’t give you any problems.

Case:

Tier 1 and 2:

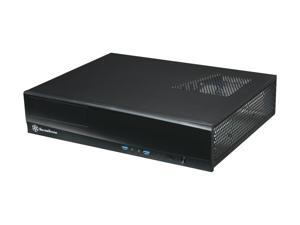

$60 – Silverstone ML-03B Mini-ITX/Micro-ATX

The Silverstone ML-03B is relatively cheap and small.

It also supports a full ATX size power supply as well as a Micro-ATX motherboard, giving room for future upgrades.

However, it doesn’t have fans so you’ll have to buy that separately.

Alternatives

• $80 – LIAN LI PC-Q11B Black Mini-ITX
• $100 – LIAN LI PC-Q11A Silver Mini-ITX

This case, available in black and silver, doesn’t offer the option to upgrade to a Micro-ATX motherboard in the future, but it allows you to use a sound card as it has full-sized expansion slots. Furthermore, it supports a full ATX size power supply. It also comes with a 140mm fan for efficient cooling.

Alternatives

• $110 – LIAN LI PC-Q08B Black Mini-ITX
• $120 – LIAN LI PC-Q08A Silver Mini-ITX
• $120 – LIAN LI PC-Q08R Red Mini-ITX

This case, available in red, black, and silver, is one of the most flexible Mini-ITX motherboards on the market.

It doesn’t support Micro-ATX motherboards, but it supports up to six 3.5″ hard drives, has a 120mm fan and a 140mm fan, supports a full ATX size power supply, has reasonable CPU clearance, and accommodates all but the largest graphics cards.

Power Supply:

Tier 1 and 2:

$40 – SeaSonic SS-300ET 300W 80 PLUS Bronze

This is an HTPC with an E-350 processor and onboard graphics, so needless to say, it draws very little power and you don’t need a large power supply.

Instead, I focused on giving you a high-quality, reliable, and efficient (80 PLUS Bronze Certified) power supply from SeaSonic.

Cooling:

Tier 1 and 2:

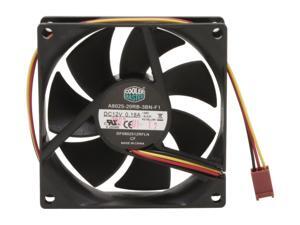

$10 – Cooler Master R4-S8R-20AK-GP 80mm Case Fan (x2)

The Silverstone case includes no fans, which is why I’m recommending two low-noise fans to add some airflow.

The other alternative cases include fans already, so only buy these two fans if you go with the recommended Silverstone case.

TV Tuner:

$80 – AVerMedia AVerTV Hybrid Volar Max USB 2.0

The motherboard has a single PCI-Express 16x slot, which I left open if you choose to add a dedicated PCI-Express sound card.

However, nothing stops you from using this USB TV Tuner if you wish to watch or record TV. Note that it is optional and that its price is not included in the build because not everyone wants or needs a TV Tuner.

Sound Card:

Free: 6 or 8 Channels Onboard Audio

This motherboard does include integrated onboard sound, which is good enough for most people

• $100 – Creative Labs Sound Blaster X-Fi Titanium
• $70 – ASUS Sonar DX
• $200 – ASUS Sonar D2X

If you’re an audiophile or just enjoy high quality sound, then onboard sound, no matter how good it is, won’t cut it for you, so here are three excellent PCI-Express 1x (yes, a PCI-Express 1x card will fit and function in a 16x slot) sound card that I recommend to you.

Pick the one that suits your needs.

Compatibility note:

If you go with the Silverstone case, then your only choice is the ASUS Sonar DX, which include a half-height PCI-bracket, which is compatible with the Silverstone case.

On the flip side, if you go with a LIAN LI case, you can pick any PCI-Express 1x sound card.

Network:

Free:ASRock E350M1 Integrated: 10/100/1000 Mbps LAN

Basic connectivity for a basic motherboard.

Free: ASUS E35M1-I Deluxe Integrated: Wireless 802.11 b/g/n, Bluetooth 3.0, 10/100/1000 Mbps LAN

It’s called deluxe for a reason. This motherboard includes wireless 802.11, Bluetooth 3.0, and 10/100/1000Mbps LAN. What else could you need?

Upgrades:

$20 – Rosewill 802.11b/g/n 300Mbps Wireless USB2.0 5dBi Antenna

This is a capable WiFi antenna if you want WiFi with the cheaper ASRock motherboard.

$13 – AZiO BTD-V201 Bluetooth Adapter

This is a Bluetooth adapter if you want Bluetooth with the cheaper ASRock motherboard.

Accessories:

$51 – ADESSO WKB-3200UB Wireless Keyboard w/ Optical Trackball

This is the least expensive input option at $51. For that price, you get a keyboard that features a numpad, an optical trackball, a scroll-wheel, two buttons for left and right mouse buttons “clicks” as well as many multimedia buttons.

$80 – nMEDIAPC HTPCKB-B Wireless Keyboard with Track Ball & Remote

If you want everything the ADESSO has, plus a remote, get this.

$40 – Logitech M705 Marathon Mouse

With a rated battery life of up to three years, this is a good input device if you want to use a basic mouse without worrying about too much about battery life. Works great with the Solar Keyboard.

$60 – Logitech K750 Solar Keyboard

With a good ThinkPad like key feel, and potentially infinite battery life, this is a good input device if you want a basic keyboard without worrying at all about battery life. Works great with the Marathon Mouse.

$121 – Logitech diNovo Mini

This is a high end, small form factor input device for your HTPC. It connects via Bluetooth(included dongle), has a mini keyboard, and a touchpad.

$155 – Logitech diNovo Edge

This is a high end, full size input device for your HTPC. It connects via Bluetooth, has a full size keyboard, and a fancy touchpad.

Recommended operating systems:

The operating system cost, if there’s one, is not included in the total cost. The two reason for this are:

1. The budget only considers hardware.
2. You may be able re-use a previous license, go with an open-source OS such as Linux or , if you’re so inclined and are aware of what you’re doing, use torrents.

If you decide that you need a need OS, here are some recommendations:

Windows 7

Despite Linux gaining more and more support, Windows still is the platform of choice for compatibility at the moment. Considering that you’ll have 4GB of RAM or more, along with a dedicated video that also has memory (512MB or 1GB), you’ll need a 64-bit version, as 32-bit is limited to 4GB of memory for the entire system, which is not enough now, nor in the future if you decide to upgrade.

Windows 7 is by far better than Windows Vista, looks better, more functional, less annoying, consumes less resources and brings DirectX 11 to the table.

Three Available Versions:

1. Windows 7 Home Premium: The basic edition, with all the looks, most of the functionality and DirectX 11.
2. Windows 7 Professional: If you want the virtual XP mode, you’ll need at least the Professional edition. Also required if you want to backup to a network, using the built-in backup mode in Windows.
3. Windows 7 Ultimate: To help protect data on your PC and portable storage devices against loss or theft with BitLocker and to work and switch between 35 languages.

OEM vs Retail:

The OEM version allows you to only install it once on a computer. You cannot transfer the license to another computer in the future and you do not receive support from Microsoft. It’s the same type of license you get when you get Windows on a desktop or laptop that you buy from Dell, HP and such. It’s less expensive, but gives less flexibility. Ideal if you intend on keeping your computer for many years.

The Retail version is the full version, which allows you to transfer the license to another computer in the future and you can call Microsoft if you need any form of support. Ideal if you intend on upgrading/changing your computer down the road.

Other than that, you get the same features on both, only the license differs. The price between the two differs obviously.

OEM Versions:

1. Microsoft Windows 7 Home Premium 64-bit OEM – $105
2. Microsoft Windows 7 Professional 64-bit OEM – $140
3. Microsoft Windows 7 Ultimate 64-bit OEM – $175

Retail Versions:



1. Microsoft Windows 7 Home Premium Retail – $184
2. Microsoft Windows 7 Professional Retail – $275
3. Microsoft Windows 7 Ultimate Retail – $292

Linux

A lot of people these days boots more than one OS. Linux is a wonderful choice: powerful, cool, and cheap. Take your pick of distributions and have fun! For Fedora, Ubuntu, Debian, Slackware, and Mandrake, try Distrowatch.com, Cheapbytes.com, LinuxQuestions.org or one of the many others.

While Linux does not offer the wide compatibility of Windows with video games, gaming on Linux is still possible, through projects such as Wine, Cedega and Crossover. For more on the topic of Linux Gaming, I invite you to read this excellent article from AnandTech: Linux Gaming: Are we there yet?

What about Word processing, Excel and other Windows-based programs that you need? Linux being an open platform, there are many free alternatives that will answer your needs. For Word/Excel and such, try OpenOffice.

Cost: Free

Conclusion

What do you think of the brand new Budget HTPCs?

Let us know what you think by leaving a comment below.

Coming up soon: Updates to Mainstream and High-End HTPCs

Now that we’re done with the budget HTPCs update, you can expect updates to the Mainstream and High-End HTPCs within the next two weeks.

Budget vs. Mainstream vs. High-End HTPC

Here are the pros and cons of each system, to help you figure out which one is best adapted to your needs:

Budget HTPC: AMD Bobcat

Perfect for an inexpensive, low-power, silent machine dedicated to media playback

Pros:

• Very low power consumption
• Flexible: can browse the web, play flash games, view photos, and do any other basic task
• Cool: with low power parts, an efficient power supply, and good ventilation, this HTPC stays cool
• Silent: quiet fans, power supplies, and motherboards were picked
• Small size: either a slim tower or a shoebox size
• Capable of 1080p content playback
• Low cost: Starts at $310 — $120 cheaper than the previous version

Cons:

• Limited CPU power: Although faster than netbooks, this features a dual-core AMD E-350 and is not recommended for a workstation, audio and video encoding or conversion or an hybrid gaming machine.
• Limited upgrades: The CPU is embedded, so you can’t upgrade it. You only have a single PCI-Express 16x slot, limiting your options.

Mainstream HTPC: AMD Llano

Will be updated within a week or so.

Pros:

• Strikes a good balance between performance and power consumption
• Can be used for light gaming
• Good mainstream computing power

Cons:

• Not good for intense gaming
• CPU and GPU are both adequate but not exceptionally powerful — a compromise

High End HTPC: Intel Sandy Bridge + Discrete GPU

Will be updated within two weeks or so.

Pros:

• Maximum performance when it comes to audio and video encoding or conversion
• Most performance in the least amount of space

Cons:

• Expensive
• The highest power consumption of the three HTPC builds

Don’t miss the AMD Llano and Intel Sandy Bridge + Discrete GPU HTPC/SFF updates articles by receiving our future articles for free via RSS or Email:

Did you know that you can get our future articles for free via RSS or Email?

That way, you never have to check the site for updates again because you get the latest and greatest articles delivered automatically in your RSS reader or Email inbox around 7PM EST, every day that I publish an article.

If you’re not familiar with RSS technology, here an article that explains What is RSS?

If the fact that you’ll be receiving outstanding custom PC designs for free is not enough to convince you, here are 7 Reasons to get our posts via RSS or Email.
